Fountain Pumps
To maintain clean, beautiful water in your fountain, you need to keep the water moving. A pump will prevent stagnant waters that can lead to bad odors and mosquitoes nesting on the water's surface.
Choosing the Right Fountain Pump
To select the right fountain pump, measure from the water level to the highest point that the water reaches. This is what we call the Ideal Pumping Height. Choose a pump using the graphics above that has an ideal pumping height greater than the height measured.
HELPFUL TIPS:

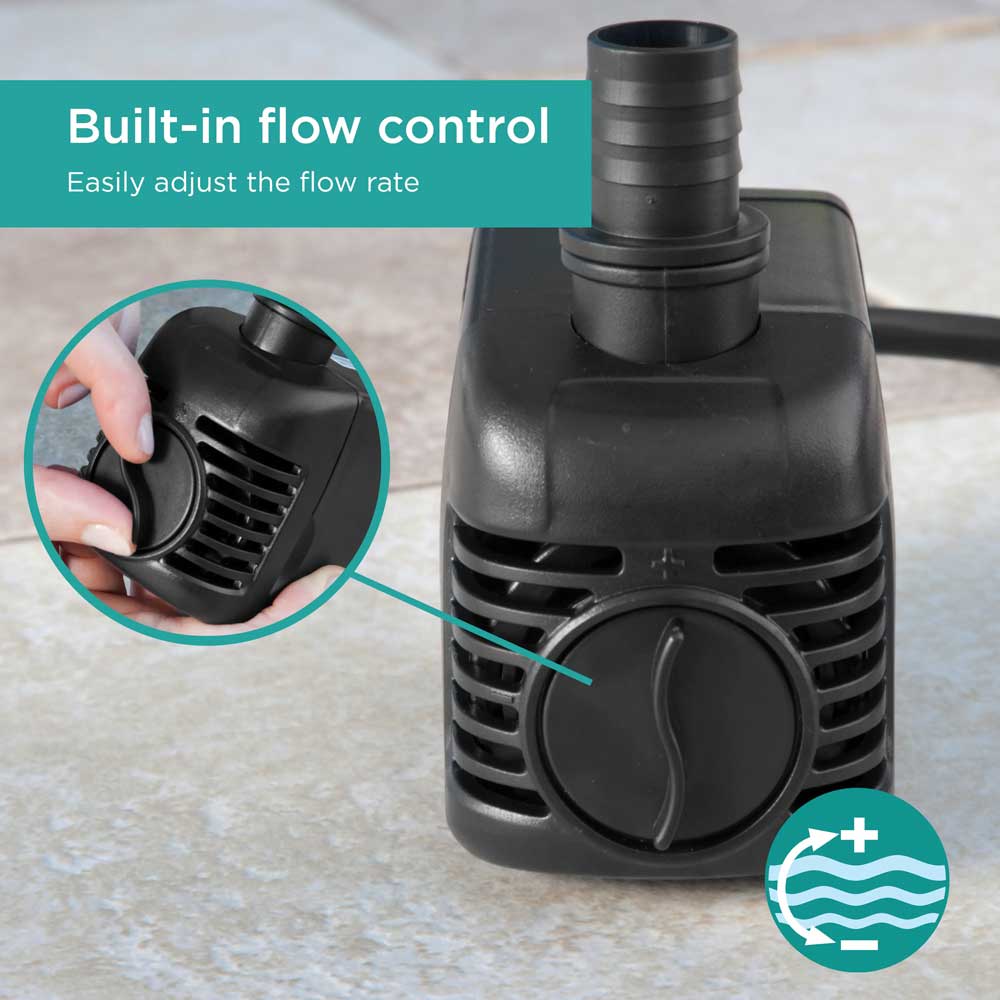

- If you’re not sure which pump you need, it’s best to choose a larger pump and reduce the flow using the adjustable flow control.
- If the pump is too small, there won't be enough flow or spray. If the pump is too large, it can run out of water and burn itself out.
- Be sure to check the area where your pump sits inside the fountain. Not all fountains can house large-size pumps.
About TotalPond Fountain Pumps

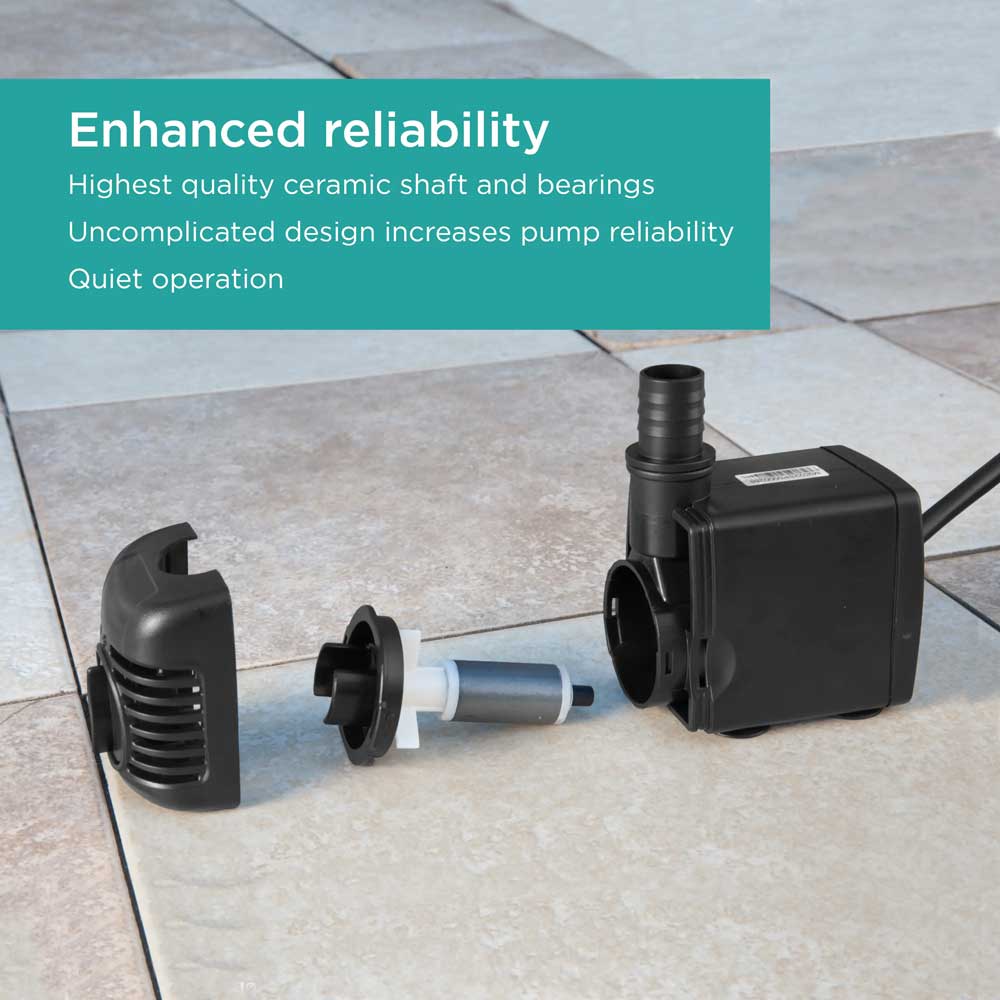

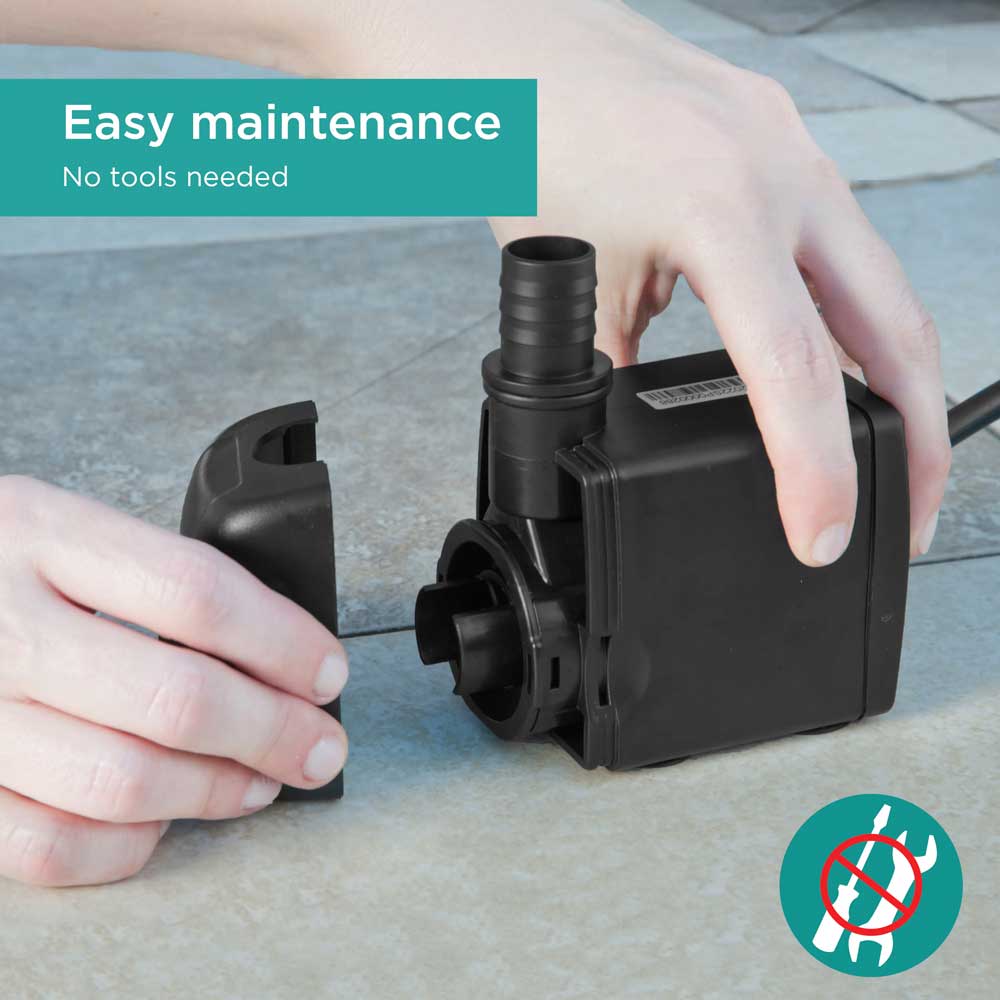

Standard Fountain Pumps fit perfectly into existing fountains and water features. Their compact power plug size and strong, built-in suction cups allow for easier installation and mounting. High-quality ceramic shafts and bearings supply undisrupted flow and enhanced reliability, while their quiet operation allows you to enjoy the natural, soothing sounds of your fountain. The uncomplicated pump design allows for simple and quick access to all moving parts — no tools necessary — increasing the pump’s longevity. Standard Submersible Fountain Pumps must be fully submerged in water to operate properly.
Ideal Pumping Heights
| Pump Size | Ideal Pumping Height | Pump Dimensions |
|---|---|---|

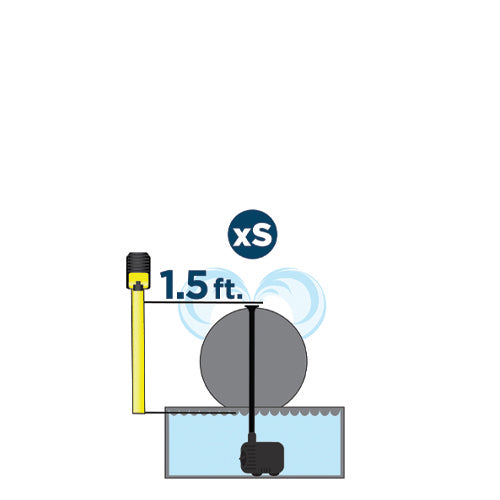

| Extra-Small (70 GPH #52213) | 1.5 ft. | 2.5 x 1.6 x 1.8 in. |

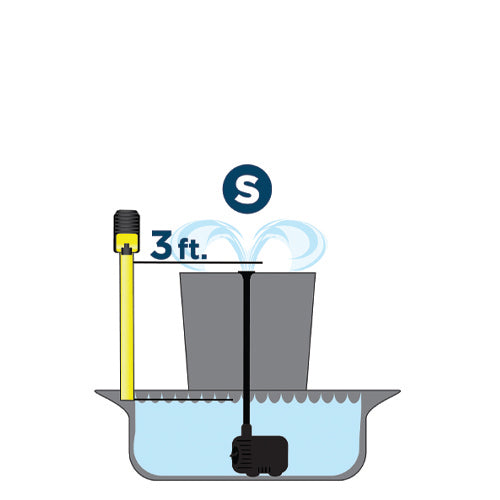

| Small (140 GPH #52217) | 3 ft. | 3 x 1.7 x 2 in. |

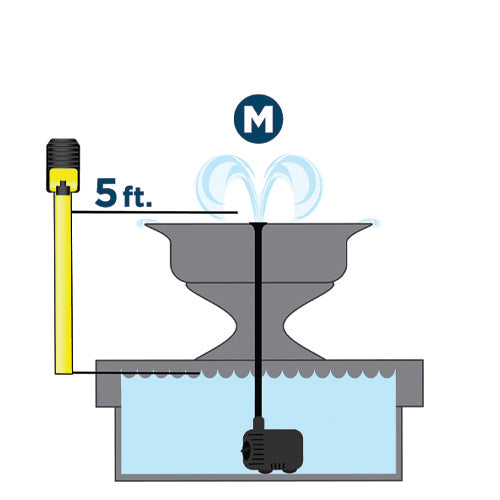

| Medium (300 GPH #52216) | 5 ft. | 3.6 x 2.3 x 3 in. |

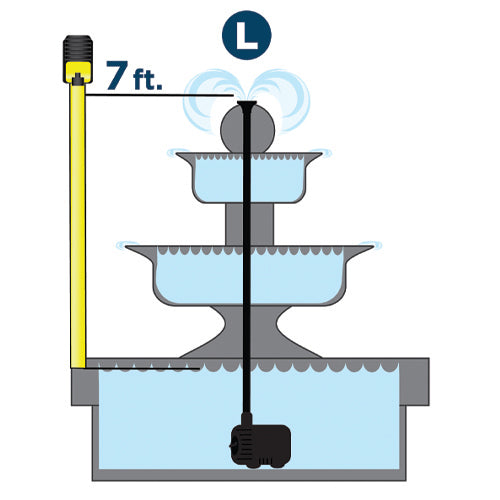

| Large (500 GPH #52228) | 7 ft. | 4.1 x 2.7 x 3.7 in. |
Featured Collection
Low Water Shut-off Fountain Pumps

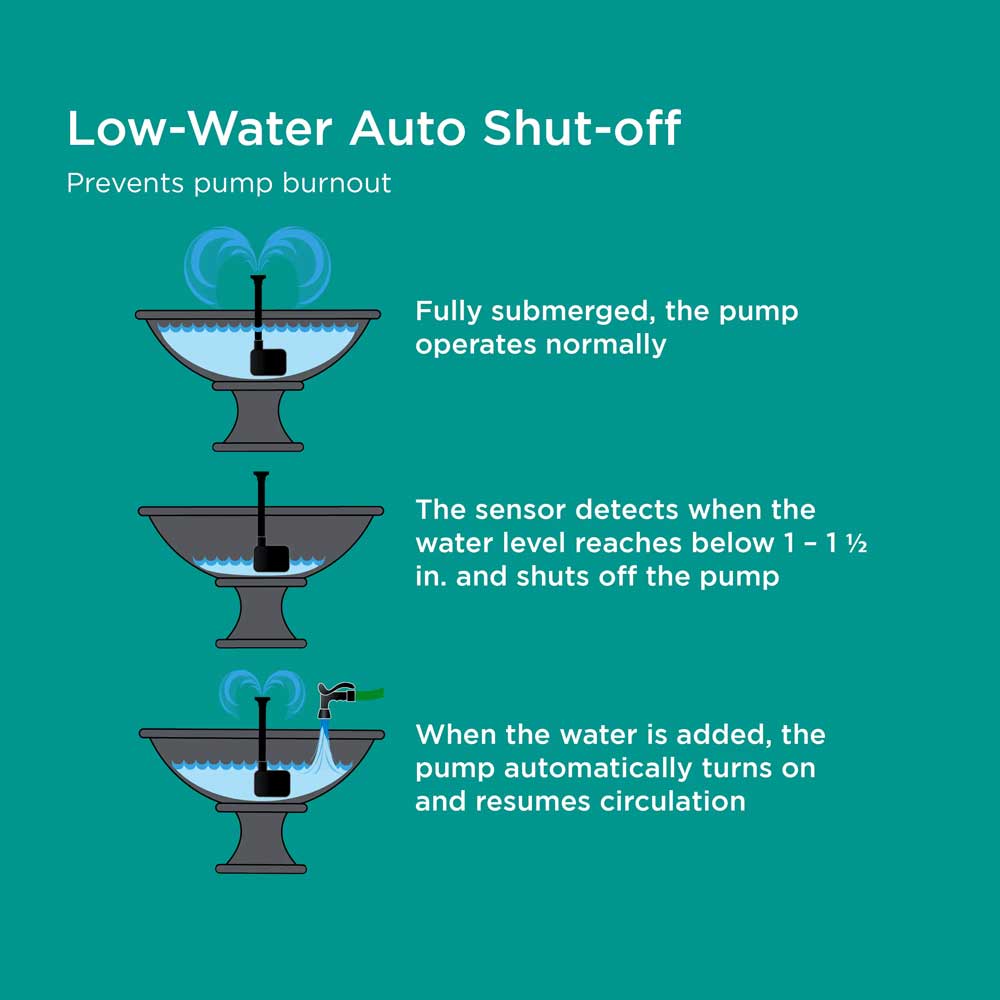

Low Water Shut-off Pumps work the same as standard submersible fountain pumps when they are fully submerged in water. However, when the water levels reach below 1-1.5 inches, a Low Water Shut-off Fountain Pump will shut itself off to prevent burnout. The pump automatically turns back on when the water levels are restored. These pumps are ideal for fountains located in a sunny or windy area where the water levels can drop unexpectedly. Â
Ideal Pumping Heights

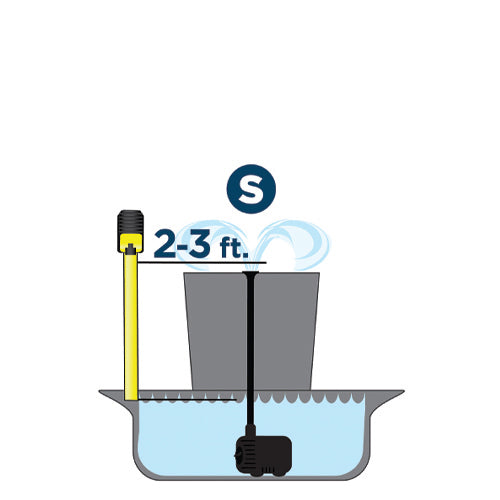

Small (#52299)
Medium (#52320)
| Pump Size | Ideal Pumping Height | Pump Dimensions | with Light |
|---|---|---|---|
| Small (160 GPH #52299) | 2-3 ft. | 3.5 x 2.5 x 2 in. | No |

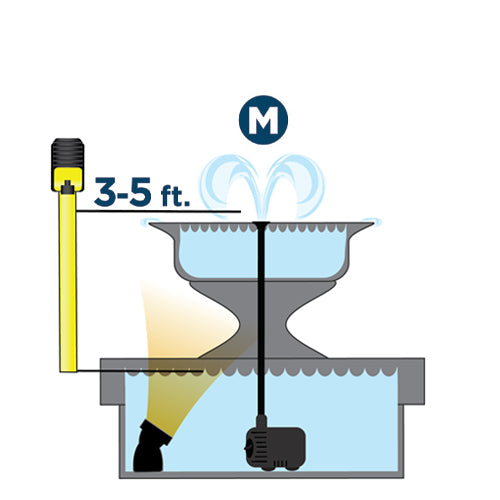

| Medium (435 GPH #52320) | 3-5 ft. | 4.6 x 3.3 x 2.6 in. | Yes |
Tubing
Tubing is a conduit, allowing water to flow from the pump to the fountain outlet. Our Fountain Pumps come with adapters that are compatible with the tubing sizes below.
Compatibility Charts
| Fountain Pump Size | X-Small (#52213) | Small (#52217) | Medium (#52216) | Large (#52228) |
|---|---|---|---|---|
| Tubing Compatibility | 3/8 in. ID 1/2 in. ID |
3/8 in. ID 1/2 in. ID |
1/2 in. ID 3/4 in. ID |
1/2 in. ID 5/8 in. ID 3/4 in. ID |
| Low Water Shut-Off Fountain Pump Size | Small (#52299) | Medium (#52320) |
|---|---|---|
| Tubing Compatibility | 1/2 in. ID | 1/2 in. ID |
